Our Design Services

Welcome to Steenson Graphics, where engineering meets creativity.

We specialize in product design and modification, mold design for investment casting, and plastic injection molds.

We follow your specifications to give you quality designs for superior parts, for industrial, mechanical, and any other application.

Part Design and Modification

Working from detailed engineering prints, rough models, or even "napkin" sketches, we can help you develop your part ideas into finished 3d solid models ready for implementation into any manufacturing process.
We also can offer assistance in modifying existing 3d models for engineering or design changes, or to make the model more efficient for manufacture.

Investment Casting Mold Solutions

Production Molds for Plastic Injection

We can design anything from the simplest manually operated molds for investment casting to more complex manual molds with hand loaded cores, soluble cores, and other undercut solutions, to fully automatic molds to eject your wax patterns for high yield production.
From flat simple parting lines to complex parting lines to most accurately cast your parts.

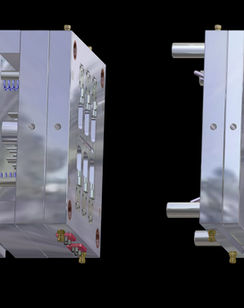

Complex, multi-cavity molds built to industry standards and your specifications for Plastic Injection Molding? We can do that too.
Our designs use mold bases and components from the best known suppliers in the industry as a foundation to make sure everything is standard and ready to manufacture for your presses.

Solid 3d Designs complete and ready to cut, to your specifications and industry standards.
We will also take on jobs generating Cavity, Core and Slide, Insert, or soluble core separation that your in-house designers can adapt to your own standards, or splitting parts for multiple-cavity molding for wax assembly for investment casting. Designing fixtures for cutting inserts and components is a specialty, and we can also design electrodes for EDM.
CAD Files available in multiple up to date formats for compatibility with your systems.
